LINE BREAKING
COURSE 760: 1 DAY: Max 6 Candidates
Pipework is often broken when cleaning, repair or maintenance of industrial systems is performed. Compliance with a line breaking policy is essential to reduce the potential dangers. This course teaches participants the safe methods of breaking lines and the importance of possessing and complying with a line breaking policy or permit as well as the proper procedures to follow before, during and after line breaking.
PARTICIPANTS
This course is intended for engineers, supervisors, operators and anyone working in and around industrial systems where a line breaking policy or safe system of work for line breaking is in force.
COURSE PRESENTATION
After reminding the candidates about the dangers of industrial fluids and the legal issues, the course then employs several training rigs, simulating real industrial pipework. Candidates can practice each of the skills that the course provides on these training rigs as well as performing the key ones for the purpose of the practical assessment. A separate knowledge-based assessment ensures that the candidates have achieved the necessary understanding. Comprehensive course notes are provided.
COURSE OBJECTIVES
On completion of the course, participants will be able to
- identify the dangers of common industrial fluids
- state the requirements of the relevant legal statutes, codes of practice etc
- describe the safe operating procedures used in industry for line breaking
- identify the fluids and direction of flow in industrial pipework
- identify potential failures in the common pipework jointing methods
- use the correct tools and PPE when breaking lines
- complete permit to work procedures
- perform pipework isolations using various methods
- secure pipework isolations using various methods
- break industrial lines safely
- blank / drain / flush pipework to make it safe to work on
- safely re-connect pipework
- test pipework for leaks.
Successful completion of the course leads to the award of the Technical Training Solutions competence certificate 760: Line Breaking.
What do candidates on the Line Breaking course actually do?
As with all Technical Training Solutions courses, the health and safety issues concerned with line breaking are addressed first and foremost. This is achieved by involving the candidates in a discussion of which fluids and gasses are used in their process area. The instructor will ask questions about the current pipework marking schemes and isolation codes of practice in use, and compare them to the latest Health & Safety codes of practice.
The following are some of the pages from the course notes for this part of the course, describing the ways in which positive isolations can be acheived, discussing the various types of isolations that can be used and describing the alternative levels of isolation security that are necessary, bearing in mind the dangers of the fluids etc.
 |
 |
 |
The various methods of pipework isolation are then discussed and the candidates prepare a safe method of work document for line breaking. The course then looks at some of the practical issues concerned with joining pipes together properly and tightening flanged joints with even torque to ensure there are no leaks etc.
The practical aspect of the course is fundamental in the training ethos of ‘Learning by Doing’. The importance of using the correct tools is demonstrated in a torque exercise whereby we examine the effects of uneven tightness on flange joints. Candidates compare the results of using combination spanners, adjustable wrenches and torque wrenches. The following are some example pages from the course notes for this part of the course, discussing line breaking pipework isolation procedures, examples of the common pipework joining methods and tightening flanged joints in pipes with even torque.
 |
 |
 |
In order to bring home the importance of best practice and planning of pipework isolations, various isolation rigs are used for the candidates to practice writing method statements for line breaking at various points on them.
When this task is completed the candidates (working in pairs) will swap method statements with other groups and implement them to see if there have been any safety breaches. Padlocks, paperwork and testing is required to demonstrate best practice.

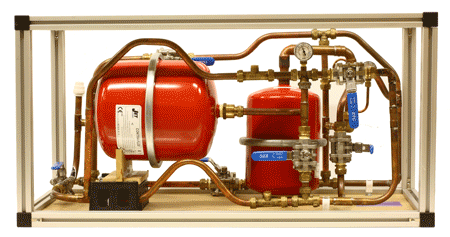

Invariably candidates will find that their method statements do not work out in practice, but this is an important learning outcome of the training course. By making mistakes on the rigs and learning from them, a better understanding of the workplace issues can be gained. The following are the training rigs used for this important part of the line breaking course.
 |
 |
Finally the course closes with consolidation questions which the candidates will have to answer. These take the form of 15 multiple choice questions which will demonstrate that the candidates have understood the key issues raised in this valuable course.
